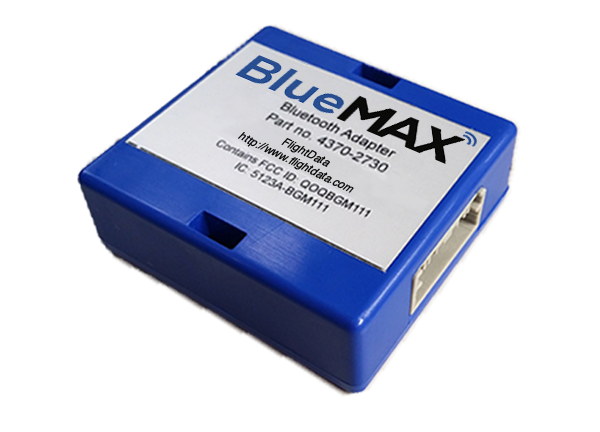

The BlueMAX module captures serial data from an RS232 data feed and streams it via Bluetooth Low Energy to portable devices. This enables supplementary aircraft data (such as engine & GPS data) to be displayed and logged on a portable device. Installation requires an adapter harness, which will vary based on the specific application.

Installation documents can be downloaded here.

For Cirrus SR22T (serials 0001 - 1691) order this module with: RDM Adapter Harness

• NOTE: This product is compatible with SR22T G3 to G5 and is not currently compatible with G6 and above (i.e. serials 1692 and above)

For Cirrus SR22 order this module with:

• serials 0002-0141 (ARNAV MFD): ARNAV Adapter Harness
• serials 0002-1086 (Avidyne MFD): SIU Adapter Harness & order J719/P719 connectors
• serials 1087-1601, 1603-1643 and 1645-1662: SIU Adapter Harness
• serials 1602, 1644, 1663-2437: DAU G2 Adapter Harness
• serials 2438 & subsequent (Avidyne MFD): DAU G3 Adapter Harness
• serials 2979, 2992, 3002, 3026 - 4593 (Perspective Avionics): RDM Adapter Harness

For Cirrus SR20 order this module with:

• serials 1005-1267 (ARNAV MFD): ARNAV Adapter Harness
• serials 1005-1454 (Avidyne MFD): SIU Adapter Harness & order J719/P719 connectors
• serials 1455-1581: SIU Adapter Harness
• serials 1582-1877, 1879-1885: DAU G2 Adapter Harness
• serials 1878, 1886 & subsequent (Avidyne MFD): DAU G3 Adapter Harness
• serials 2016 - 2392 (Perspective Avionics): RDM Adapter Harness

For PA32, Columbia / Corvalis, and other non-standard installs, order the Universal "Bare" Harness.
