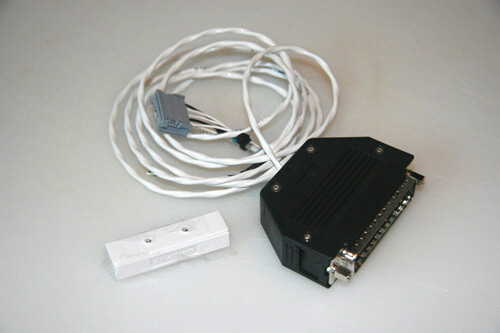

This harness connects a BlueMAX interface module to an SIU equipped SR22 or SR20. This harness is used when the Avidyne MFD has been permanently removed. It connects a BlueMAX interface module directly to the MFD connector, providing power, engine data and GPS data in one.

It includes a tank selector position sensor to enable detection of the selected tank.

NOTE: Aircraft which use an SIU interface are identified by the presence of analog engine instruments on the right side of the instrument panel. Not all of these aircraft have an SIU installed by default. Verify the presence of an SIU by confirming the MFD displays engine data on the Engine page, or visually confirm the presence of an SIU mounted on the co-pliot kick panel (below the analog engine instruments). Once an SIU is installed, compatible aircraft will include:

• G1 / G2 SR-22 (serial numbers 0002 - 1086) - also order J719/P719 connectors
• G1 / G2 SR-22 (serial numbers 1087 - 1601, 1603 - 1643, 1645 - 1662)
• G1 / G2 SR-20 (serial numbers 1005 - 1454) - also order J719/P719 connectors
• G1 / G2 SR-20 (serial numbers 1455 - 1581)

Refer to the BlueMAX installation instructions for full details
